Semi-Auto Shrink Wrap Machine
Our shrink wrap series comprises of machine with various production capacity from All in One Chamber models, Two-in-One compact range and also traditional L-Sealer / Shrink Tunnel Combination.

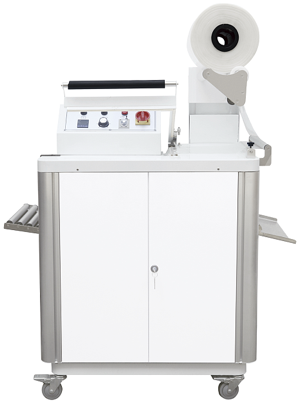

Model PFM-400
Two-In-One Compact Shrink Wrapper
The PFM-400 two-in-one compact shrink wrapper features an L-Sealer on the upper part of the machine while have a shrink tunnel conveyor under it. This allows for a compact footprint making it extremely practical for customer whose is limited by space constraints. Suitable for low to mid output requirements.
- Features
- Specifications
- Brochure Download
- Film sealing, cutting and shrink in one operation
- A veryeconomical packaging machine for small amount productivity
- User POF, PVC as packaging materials
- Two function for option: oneis only seal cut, another is both seal cut and shrinking
- The hot air is kept in a small heating room, whichsave power consumption greatly
- Wrapped perfectly with strong hot circulating airflow
- Shrinking process can be observed through transparent cover
- Widely used in the external packaging of beverage, gift, hardware, cosmetics and plastic, etc.
| Model | Machine Size (mm) | Sealing Size (mm) | Tunnel Size (mm) | Pack Height | Power/Watt |
|---|---|---|---|---|---|
| PFM-400 | 700x640x1120 | L:400*W:400 | 415V-3Ph/4.5kW |
PFM-400 2in1 Shrink Wrapper Brochure Download

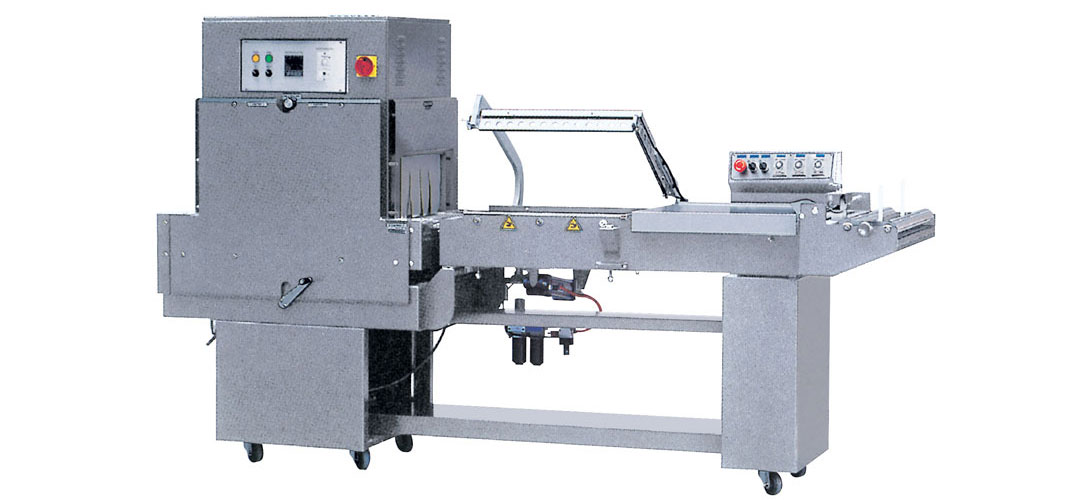

Model PLST-40 Series
L-Sealer & Shrink Tunnel Combination
The PLST-40 series comprises of an L-Sealer & Shrink Tunnel, the L-Sealer is equip with a product take away conveyor which automatically moves the product after sealing into the Shrink Tunnel.
- Features
- Specifications
- Brochure Download
- The machine combines sealing device with shrinking device
- Pneumatic type sealing. It can be also be switched to manual type sealing
- This machine is designed with automatic conveyor. Products will be delivered into shrink tunnel automatically after sealing & cutting process
- Conveyor height can be adjusted
- Its sealing height can be adjusted depending on product size
- Hot air cycling tunnel.
| Model | Machine Size (mm) | Sealing Size (mm) | Tunnel Size (mm) | Pack Height | Power/Watt |
|---|---|---|---|---|---|
| PSLT-4050BN | 2600(L) x 760(W) x 1580(H) | 500(L) x 400(W) x 200(H) | 800(L) x 400(W) x 200(H) | 5~200 mm | 415V-3Ph/11kW |
| PSLT-4060BN | 2700(L) x 760(W) x 1580(H) | 600(L) x 400(W) x 200(H) | 800(L) x 400(W) x 200(H) | 5~200 mm | 415V-3Ph/11.5kW |
PSLT-40 L-Sealer + Shrink Tunnel Brochure Download
