Chamber Type Vacuum Pack Machine
Our PACSEAL range of Chamber Type Vacuum Pack Machine covers from small compact table top models to the larger heavy duty floor standing single chamber models. Our Vacuum Packaging Machines are suitable for various food and non food packaging applications which requires products to be vacuum sealed. Typical Applications include Meat, Fish and Poultry vacuum packaging , Ready to Eat products, grains and dry produce packaging, fruits packaging.
SV-400S
SV-400S Table Top Vacuum Pack Machine
- Features
- Specifications
- Brochure
- Video
- Entirely made in stainless steel
- Transparent lid
- Digital panel with 10 program memory
- Easily removable sealing bar
- Internal support plate for height adjustment of the vacuum chamber
- Easy maintenance
Options
- Gas flushing entrance
| Model | Machine Dimension (mm) | Sealing Width (mm) | Vacuum Pump Capacity | Power |
|---|---|---|---|---|
| SV-400S | 520x590x530(H) | 420mm x 1 | 20m3/Hr | 1ph, 220V |
SV400/500/600 Series
SV400/500/700 Series Floor Standing Vacuum Pack Machine
- Features
- Specifications
- Brochure
- Entirely made in stainless steel
- Transparent lid
- Internal plate for height adjustment of the vacuum chamber
- Easy maintenance
- Digital Panel with 10 program memory
- Various Chamber Depth
Options
- Gas flushing entrance
- Soft Air
| Model | Machine Dimensions (mm) | Sealing Width (mm) | Vacuum Pump Capacity | Power |
|---|---|---|---|---|
| SV-400 | 520x500x860mm(H) | 430mm x 1 430mm x 2 | 20m3/Hr | 1ph, 220V |
| SV-400L | 610x520x860mm(H) | 400mm x 1 530mm x 1 | 20m3/Hr | 1ph, 220V |
| SV-500 | 610x560x830mm(H) | 460mm x 1 | 20m3/Hr | 1ph, 220V |
| SV-500D | 610x560x830mm (H) | 460mm x 1 | 20m3/Hr | 1ph, 220V |
| SV-700 | 800x700x870mm(H) | 700mm x 2 540mm x 2 650mm + 540mm AB | 20m3/Hr | 1ph, 220V |

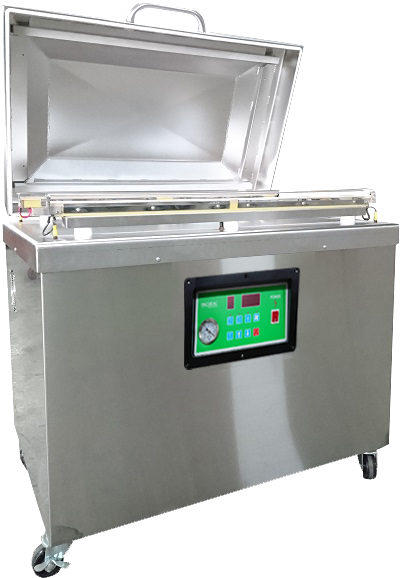

SV680/800/950 Series
SV680/800/950 Series Heavy Duty Vacuum Pack Machine
- Features
- Specifications
- Brochure
- Video
- Entirely made in stainless steel include Top Lid
- High Chamber Lid
- Internal plate for height adjustment of the vacuum chamber
- Easy maintenance
- German Vacuum Pump
- Digital Panel with 10 program memory
Options
- Gas flushing entrance
- Soft Air
| Model | Machine Dimensions (mm) | Sealing Width (mm) | Vacuum Pump Capacity | Power |
|---|---|---|---|---|
| SV-680 | 770x620x960mm (H) | 680mm x 2 / 500mm x 2 400mm + 600mm (AB Combo) | Leybold-40m3/Hr | 3ph, 380/415V – 50/60Hz |
| SV-800 | 900x690x990mm (H) | 800mm x 2 / 520mm x 2 740mm+500mm (AB Combo) | Leybold-65m3/Hr | 3ph, 380/415V – 50/60Hz |
| SV-950 | 1050x710x980mm (H) | 950mm x 2 / 580mm x 2 900 + 530mm (AB Combo) | Leybold-100m3/Hr | 3ph, 380/415V – 50/60Hz |

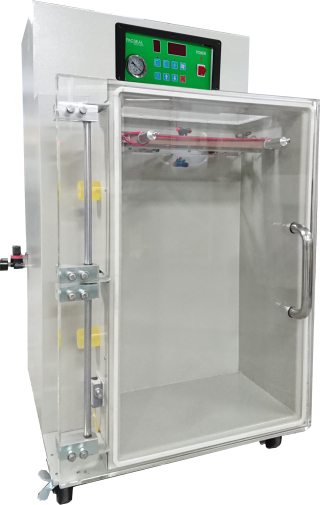

SV-700E
SV-700E Vertical Chamber Vacuum Pack Machine
- Features
- Specifications
- Brochure
- Powder Coated Machine Body
- Transparent Front Door Lid
- Internal plate for height adjustment of the vacuum chamber
- Easy maintenance
- Digital Panel with 10 memory programs
Options
- Gas flushing entrance
| Model | Machine Dimensions (mm) | Sealing Width (mm) | Vacuum Pump Capacity | Power |
|---|---|---|---|---|
| SV-700E | 830x760x1235mm (H) | 450mm x 1 | 20m3/Hr | 1ph, 220V |
SV-700E Brochure Download
