Air Cushion & Bubble Pack Machine

PACSEAL (by UTOC) Air Cushion & Bubble Pack Machine or Packaging System is suitable for all protective packaging applications for shipping, logistics, and transportation uses.

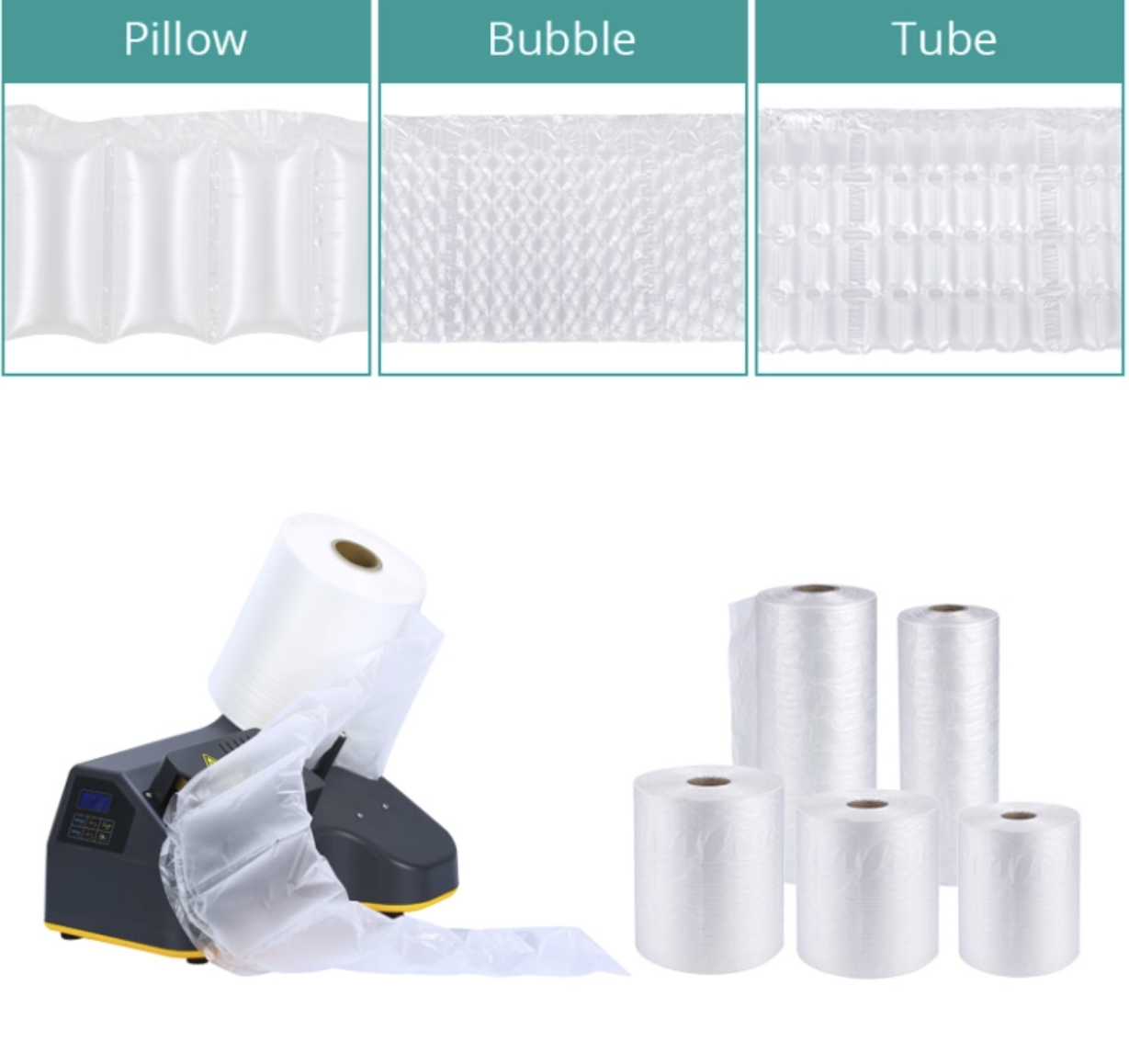

Air pillow cushions, bubbles, and columns are available in various widths and lengths to best suit most applications. Allowing custom measurements would cater to all our clients’ packaging needs. Making a one-machine solution for different types of packaging.



UNA-L1



UNA-L1 Air Cushion Packaging System


  • Features
  • Specifications
  • Brochure
  • Video
  • Small & Compact
  • Simple & Easy to use
  • Suitable for both pillow & bubble cushion films
  • Digital Controls
  • Economical
  • Easy maintenance
ModelMachine Dimensions (mm)Inflation SpeedCushion TypePower
UNA-L1330X330x200mm (H)10m/minAir Pillow / Bubble1ph, 110~220V – 50~60Hz
Cushion Film Specification
Cushion TypeCushion Size(mm)Roll LengthFilm ThicknessRoll/Ctn
Pillow200x100mm700m18mu2 roll
Pillow200x200mm700m18mu2 roll
Bubble400x250mm350m18mu1 roll
Bubble400x330mm350m18mu1 roll



PNPA-02



UNPA-02 Air Column & Bubble Packaging System


  • Features
  • Specifications
  • Brochure
  • Video
  • High Inflation Speed
  • Adjustable Pressure
  • Compact Machine
  • Easy maintenance
  • Digital Controls
  • Suitable for air column & bubble films
ModelMachine Dimensions (mm)Inflation SpeedCushion TypePower
UNPA-01650X650x380mm (H)22m/minAir Pillow / Bubble180W 110~220V
Column & Bubble Film Specifications
Cushion TypeRoll Width(mm)Roll LengthFilm ThicknessRoll/Ctn
Column300mm190m50mu1 roll
Column350mm190m50mu1 roll
Column400mm190m50mu1 roll
Column500mm190m50mu1 roll
Column600mm190m50mu1 roll
Bubble – 32mm Ball400mm190m50mu1 roll
Bubble – 32mm Ball600mm190m50mu1 roll
Bubble – 43mm Ball400mm190m50mu1 roll
Bubble – 43mm Ball600mm190m50mu1 roll
